Plan Printing

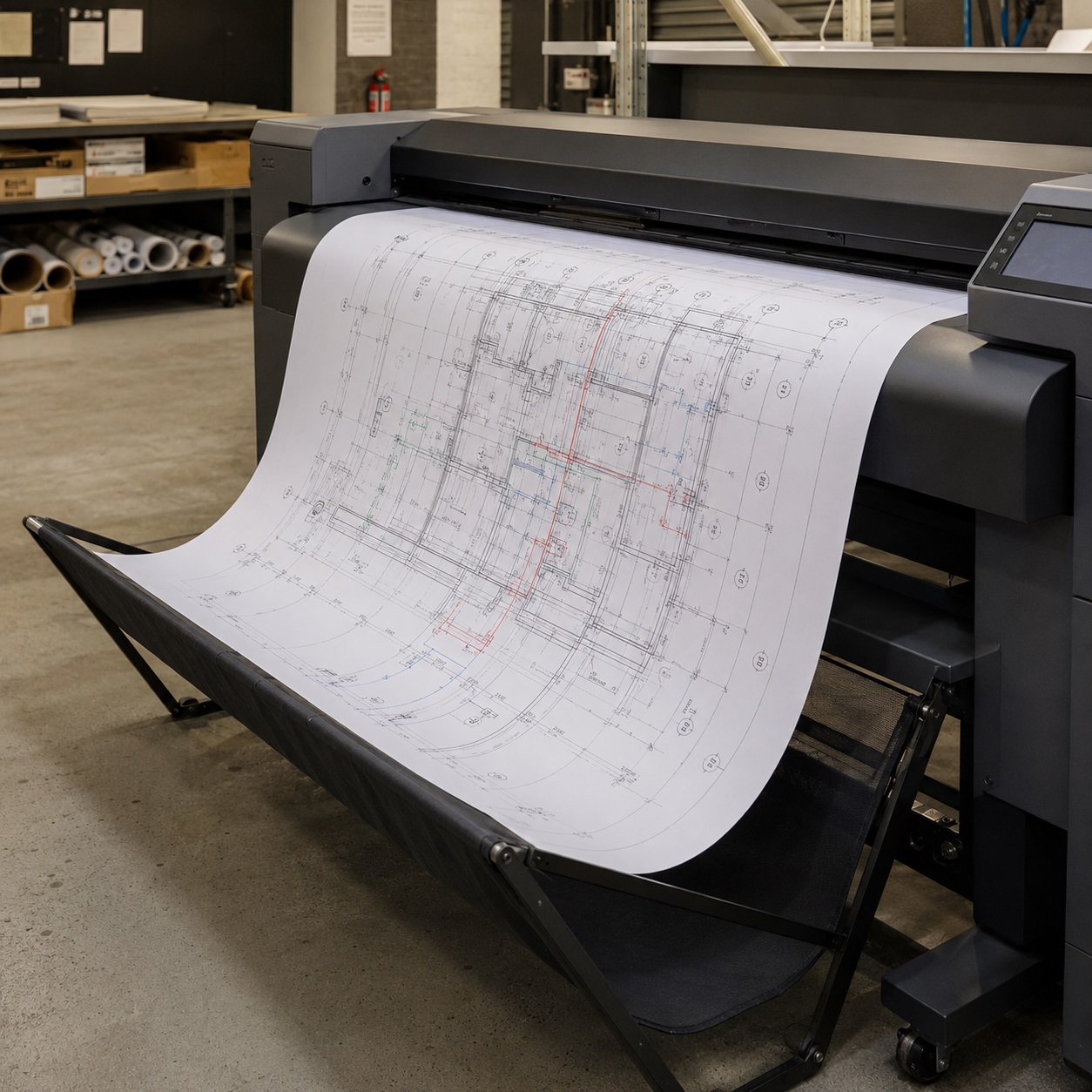

The KIP 860 is ideal for environments that require convenient multi-function productivity with a single footprint space-saving design. The KIP 860 color print system provides extraordinary print quality and performance for both color and black & white wide format printing of technical and business graphics. All system features and functions are at your fingertips using the intuitive touchscreen navigation that automates copy, scan and print functions for single touch productivity.

  • 2 Roll Multi-Function System with Integrated Scanner
  • 12” Smart System K Touchscreen
  • Standard Front Stacking
  • Optional Rear Stacking or KIPFold
  • KIP System K Print Management Suite
  • Windows and AutoCAD Drivers
  • Workflow Automation

Frequently asked questions

The ISO “A” system is widely used for printing in various parts of the world, including South Africa, while the US commonly uses the ARCH (Architecture) and ANSI (Engineering) systems. Here’s a comparison of these systems:



ISO “A” System:

  • The ISO “A” system is based on the international standard ISO 216.
  • The most used sizes in this system are A0, A1, A2, A3, A4, A5, A6, etc.
  • Each size is half the size of the next larger one when folded parallel to its shorter sides.
  • A0 is the largest size, with an area of 1 square meter, and A10 is the smallest, with an area of 1/100th of a square meter.

ARCH (Architecture) System (US):

  • The ARCH system is primarily used for architectural drawings in the United States.
  • The sizes include Arch A, Arch B, Arch C, Arch D, Arch E, Arch E1, Arch E2, etc.
  • The sizes vary depending on the intended use, with Arch E being the largest commonly used size.

ANSI (Engineering) System (US):

  • The ANSI system is used for engineering and technical drawings in the United States.
  • The sizes include ANSI A, ANSI B, ANSI C, ANSI D, ANSI E, ANSI F, etc.
  • ANSI A (8.5 x 11 inches) and ANSI B (11 x 17 inches) are the most used sizes.

PDF Files and Printing:

  • Providing PDF files at exact ISO sizes ensures 1:1 scale printing, regardless of the printing system used.
  • Non-standard sizes are proportionally resized to fit ISO “A” sizes, ensuring compatibility and consistent printing results.

In South Africa, the use of the ISO “A” system for printing provides a standardized approach, facilitating easier communication and compatibility across different printing processes and devices.

Lamination protects drawings from elements and allows the use of dry wipe markers. It’s recommended for long-term outdoor use or heavy usage scenarios.

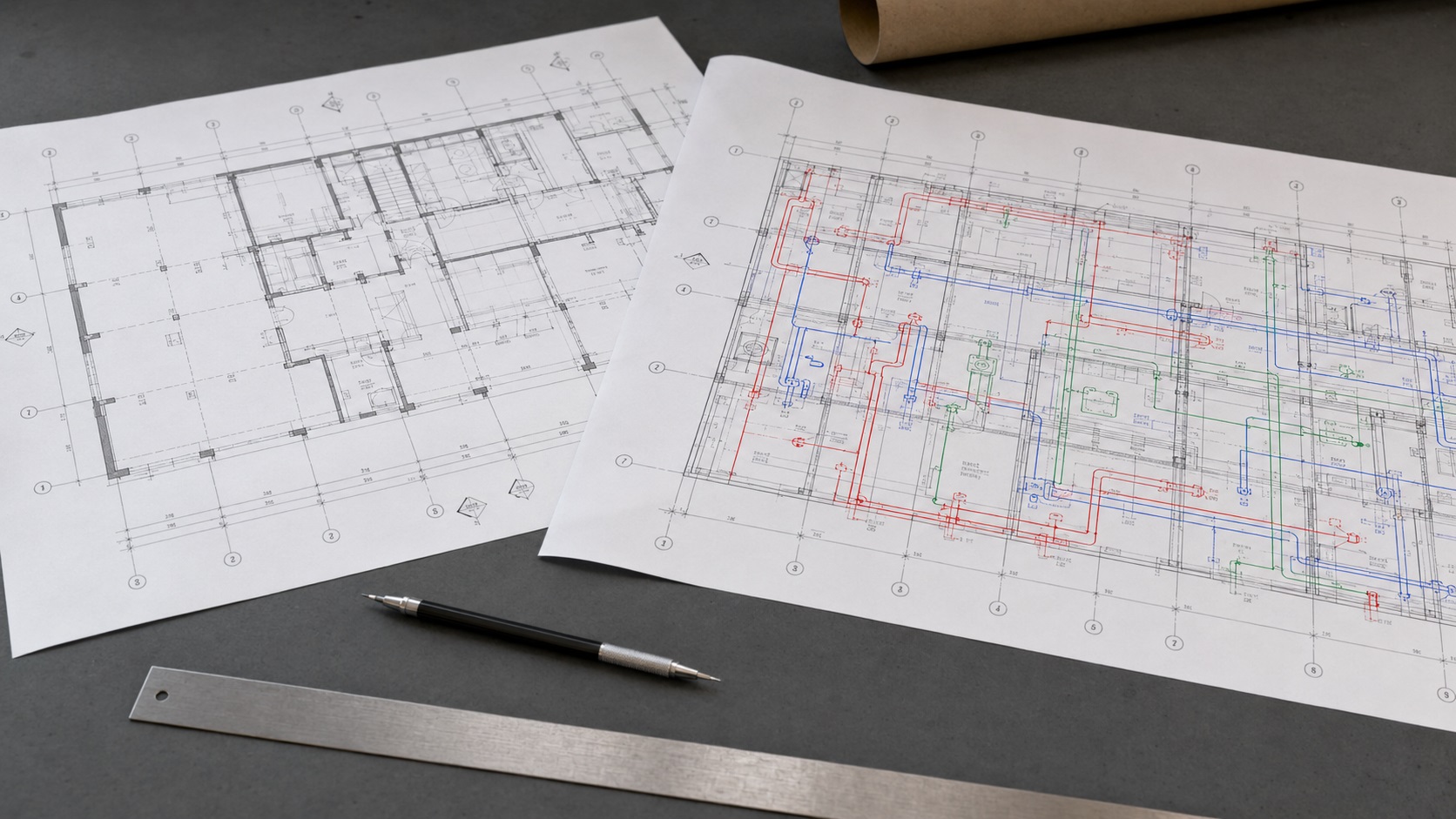

Drawings containing color-coded information may print better in colour. Light colours like yellow or blue may not reproduce well in black and white.
